tbl_customfields_options

42 rows


Description

Module: HRMS Expense Management
Purpose: Provides configurable option values for custom expense fields, dropdown selections, and lookup lists across the expense management system.
Data: Each row represents a predefined option value that can be used in custom expense fields, dropdown menus, and selection lists with configurable status and company-specific scoping.
Process Usage:
- Defines available options for custom expense field dropdowns and selection lists.
- Manages option lifecycle (active/inactive/deleted) and company-specific customizations.
- Supports expense type level filtering for context-specific option availability.
Key Points:
- Reusable option repository for consistent dropdown values across expense forms.
- Company-level isolation for multi-tenant implementations.
- Flexible option management with deletable and default value flags.
Business Impact: Enables consistent data entry, reduces manual input errors, and provides flexible configuration for expense categorization and classification.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
id bigserial 19 √ nextval('tbl_customfields_options_id_seq'::regclass)
tbl_travel_expense.expense_type_id fk_tbl_travel_expense_expense_type_id R

Primary key
Format: Long (auto-increment)
Used as: Unique identifier for each custom field option.
is_deletable int8 19 √ '1'::bigint

Format: Integer (0 or 1)
Purpose: Controls whether this option can be deleted from the system.
Values:
- 1: Option can be deleted (custom/user-created options)
- 0: Option cannot be deleted (system-critical options)
Business Logic: Protects system-required options from accidental deletion while allowing custom option management.
value varchar 200 √ null

Format: String
Purpose: The actual value stored in the database when this option is selected.
Usage: Used as the internal identifier for the option in expense records and calculations.
Examples: “TRAVEL”, “MEAL”, “ACCOMMODATION”, “PROJECT_A”
Note: Typically matches label for simplicity, but can differ for technical values.
is_default bool 1 √ null

Flag Type: Boolean
Purpose: Indicates if this option should be preselected as the default value.
Business Logic:
- TRUE: This option is automatically selected when creating new expense records
- FALSE: No default selection
- NULL: No default behavior specified
Usage: Improves user experience by preselecting common options.
label varchar 200 √ null

Format: String
Purpose: Human-readable display text shown to users in dropdowns and selection lists.
Usage: User interface display for option selection.
Examples: “Travel Expense”, “Client Meal”, “Hotel Accommodation”, “Project Alpha”
Business Rule: Usually matches value field for consistency.
cid int8 19 √ null

FK: public.tbl_customfields.id or similar parent table
Purpose: Links this option to its parent custom field definition.
Usage: Establishes hierarchical relationship between custom fields and their available options.
Example: Options for “Expense Category” field would all have same cid reference.
createdby varchar 50 √ null
modifiedby varchar 50 √ null
createddate timestamp 29,6 √ null
modifieddate timestamp 29,6 √ null
stage varchar 100 √ null

Format: String
Purpose: Controls the active status and availability of the option.
Values: “Active”, “Inactive”, “Deleted”
Workflow:
- “Active”: Option is available for selection in expense forms
- “Inactive”: Option is hidden but preserved for historical data
- “Deleted”: Option is soft-deleted and unavailable
Default: “Active” for new options.
companyid int8 19 √ null

FK: public.tbl_company.CompanyId
Purpose: Scopes the option to a specific company in multi-tenant implementations.
Usage: Enables company-specific custom field options while maintaining data isolation.
Business Use: Different companies can have different expense categories and options.
expense_type_level varchar 10 √ null

Format: Enum (BOTH, EMPLOYEE, APPROVER)
Purpose: Defines at which level this expense type option is available in the workflow.
Values from ExpensePolicyConstants.EXPENSE_TYPE_LEVEL:
- BOTH: Available to both employees and approvers
- EMPLOYEE: Only available to employees during expense submission
- APPROVER: Only available to approvers during expense processing
Default: BOTH
Usage: Controls option visibility based on user role in expense workflow.

Indexes

Constraint Name Type Sort Column(s)
tbl_customfields_options_pk__tbl_cust__3214ec07f0bf7c28 Primary key Asc id

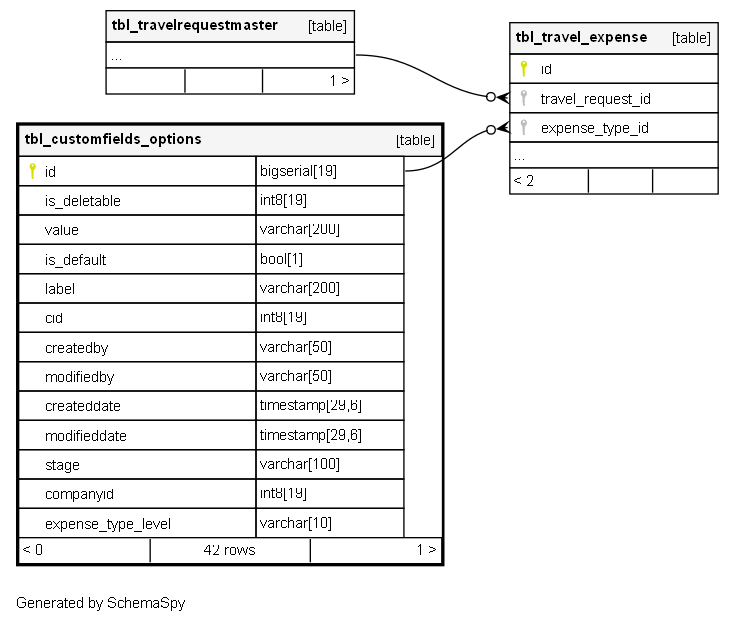

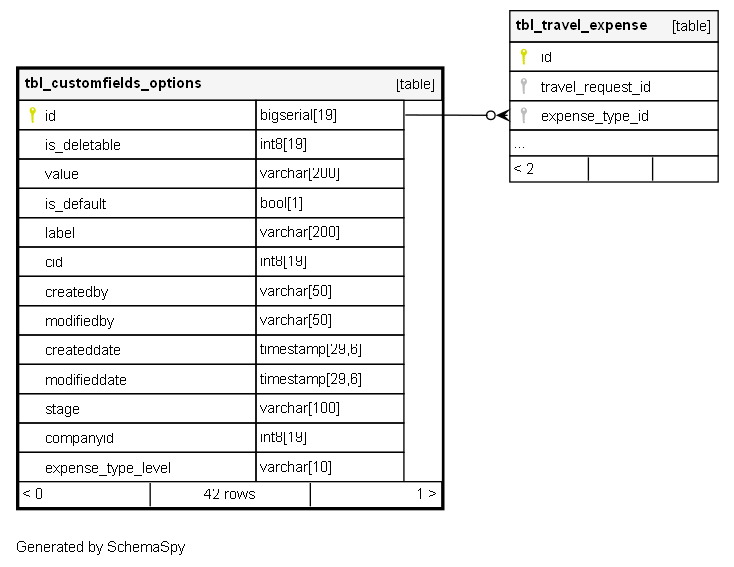

Relationships

Close relationships within degrees of separation
