tbl_okr_key_results_history

-1 rows


Description

Module: Objectives and Key results (OKR)
Purpose: Stores an immutable, historical snapshot of a Key Result (KR) whenever its status, definition, or progress metrics are updated in the main tbl_okr_key_results table.
Data: Records all KR definition details, target values, ownership, and, most importantly, the progress metrics (latest check-in value, date, percentage) at the time of the change event.
Process Usage:
- A new record is created automatically upon every KR check-in or when the KR’s structural properties are modified.
- Used for auditing goal changes, tracking progress trends over time, and resolving disputes regarding check-in values.
Key Points:
- Immutable Log: Guarantees a time-stamped history of every KR state.
- Snapshot: Mirrors all fields from the live KR table to preserve context for the audit event.
Business Impact: Provides a transparent and verifiable record of goal achievement progress throughout the OKR cycle.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
id bigserial 19 √ nextval('tbl_okr_key_results_history_id_seq'::regclass)

Primary key
Format: Long (auto-increment)
Used as: Unique identifier for a single historical snapshot/event.
key_result_id int8 19 null

FK: public.tbl_okr_key_results.id
Meaning: The ID of the original live Key Result record that this history entry belongs to.
key_result_name varchar 200 null

The name/description of the KR at the time of the event.
objective_id int8 19 √ null

FK: public.tbl_okr_objective.id
Meaning: The parent Objective this snapshot is linked to.
department_id int8 19 √ null

FK: public.tbl_department.id
Meaning: The department responsible for the KR at this snapshot time.
period_type varchar 20 √ null

The duration type for the KR at the time of the event.
start_date date 13 null

The start date for the KR period.
end_date date 13 null

The end date for the KR period.
description varchar 1000 √ null

Detailed description or context for the KR at the time of the event.
measurement_type varchar 20 √ null

The method used to track progress at the time of the event.
measurement_unit varchar 50 √ null

The unit of measure for the KR at the time of the event.
current_value numeric 0 √ null

The starting baseline value for the KR at the time of the event.
target_value numeric 0 √ null

The final target value set for this KR at the time of the event.
past_check_in_limit int4 10 √ null

The past check-in limit configured for the KR at the time of the event.
key_result_owners text 2147483647 √ null

JSON array of Employee IDs who were accountable for this KR at the time of the event.
weightage float8 17,17 √ null

The weighted contribution of this KR at the time of the event.
latest_check_in_by varchar 50 √ null

The Employee ID of the person who submitted the last progress update that triggered this history record.
latest_check_in_value numeric 0 √ null

The quantitative value reported in the update that triggered this history record.
latest_check_in_date timestamp 29,6 √ null

The timestamp of the progress update that triggered this history record.
latest_check_in_percentage float8 17,17 √ null

The calculated achievement percentage after the update was applied.
latest_check_in_weighted_percentage float8 17,17 √ null

The calculated weighted percentage after the update was applied.
latest_status varchar 20 √ null

The KR’s health status (e.g., ON_TRACK) after the update was applied.
is_individual bool 1 √ null

Boolean flag: Indicates if this was an individual KR at the time of the event.
template_field_id int8 19 √ null

FK: public.tbl_okr_template_fields_assign.id
Meaning: The ID of the template field from which this KR was originally assigned.
createdby varchar 50 √ null
createddate timestamp 29,6 √ null
modifiedby varchar 50 √ null
modifieddate timestamp 29,6 √ null

Indexes

Constraint Name Type Sort Column(s)
pk_tbl_okr_key_results_history Primary key Asc id

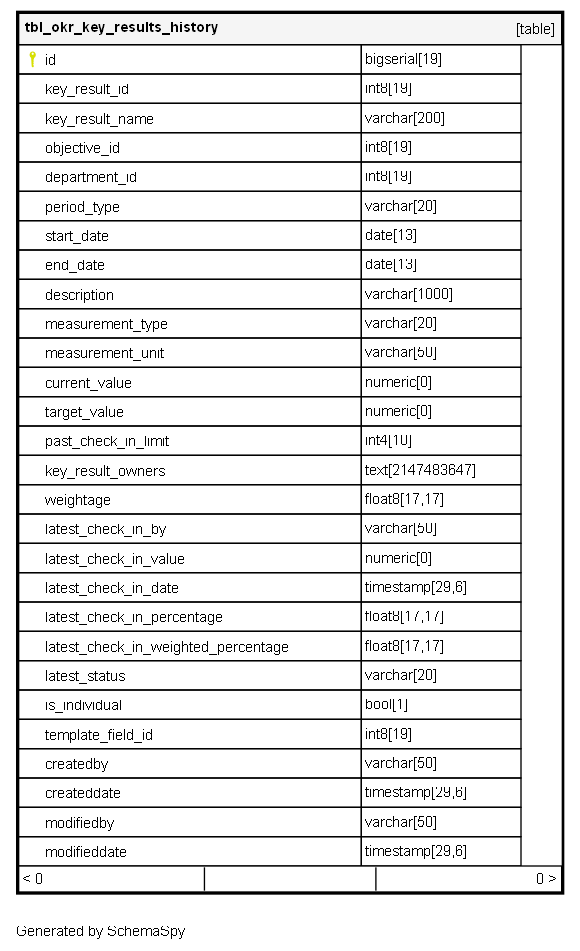

Relationships

Close relationships within degrees of separation
