tbl_rolemaster

7 rows


Description

Module: HRMS Role Module
Purpose: Defines and manages all user roles and their permissions within the HRMS system.
Data: Each row represents a distinct role with specific access rights and privileges that can be assigned to users.
Process Usage:
- Used by the security framework to determine user permissions and access levels across all system modules.
- Serves as the foundation for role-based access control (RBAC) throughout the application.
Key Points:
- Integrates with the Many-to-Many relationship with users through the user_roles junction table.
- Supports hierarchical role differentiation and company-specific role configurations.
Business Impact: Central to security management, ensures proper segregation of duties, and enables scalable permission management across the organization.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
roleid serial 10 √ nextval('tbl_rolemaster_roleid_seq'::regclass)
tbl_rolemasterhistory.roleid Implied Constraint R
tbl_userlogin.roleid fk__tbl_userl__rolei__50a4998c R
tbl_userlogin_bkp2023121.roleid Implied Constraint R
tbl_userrole.roleid Implied Constraint R
tbl_userrolemaster.roleid fk__tbl_userr__rolei__53810637 R

Primary key
Format: Integer (auto-increment)
Used as: Unique identifier for each role definition.
rolename varchar 50 null

Type: Varchar
Meaning: The unique name identifier for the role (e.g., “ROLE_ADMIN”, “ROLE_MANAGER”).
Usage: Used in code and configuration to reference specific roles.
rolediscription varchar 500 √ null

Type: Varchar
Meaning: Detailed description of the role’s purpose, responsibilities, and scope.
Usage: Provides contextual information for administrators assigning roles.
roledate timestamp 29,6 √ null

Type: Date
Meaning: The date when the role was originally created or effective from.
Usage: Tracks role lifecycle and versioning for audit purposes.
rolestatus bool 1 √ null

Type: Boolean
Meaning: Indicates whether the role is currently active and available for assignment.
Usage: Allows for temporary deactivation of roles without deleting them.
roletype int4 10 √ null

Type: Integer
Meaning: Categorizes the role by type or level within the organizational hierarchy.
Usage: Enables role grouping and hierarchical permission structures.
companyid int4 10 √ null
tbl_companymaster.companyid Implied Constraint R

FK: public.tbl_company.companyid
Meaning: Associates the role with a specific company in multi-tenant environments.
Usage: Enables company-specific role customization and isolation.
rolediff bool 1 √ false

Type: Boolean
Meaning: Flags whether this role has differentiated permissions or special characteristics.
Usage: Identifies roles that require special handling in permission checks.
createdby varchar 50 √ null
createddate timestamp 29,6 √ null
modifiedby varchar 50 √ null
modifieddate timestamp 29,6 √ null

Indexes

Constraint Name Type Sort Column(s)
tbl_rolemaster_pk_tbl_role Primary key Asc roleid

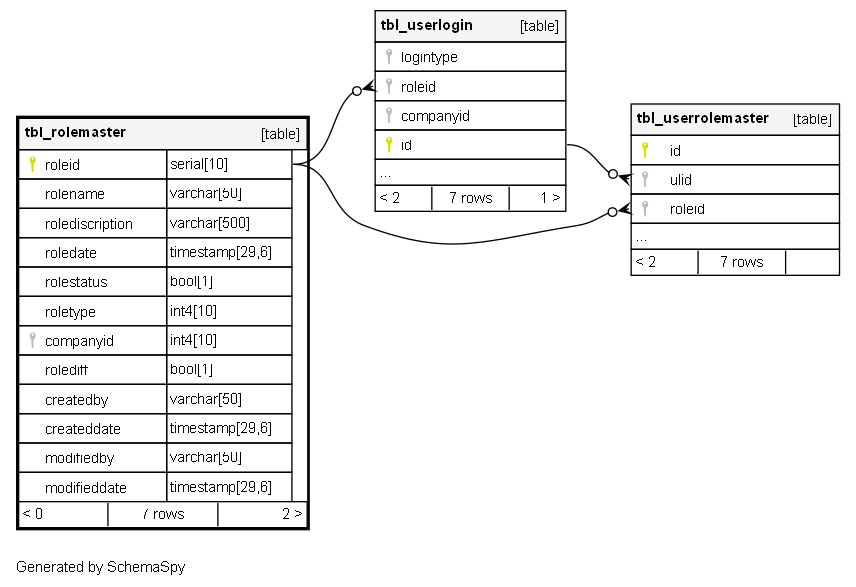

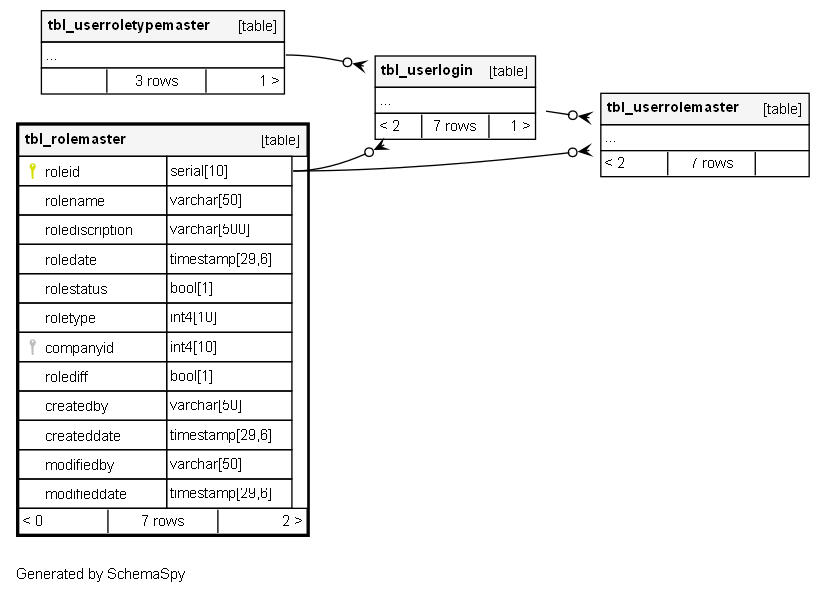

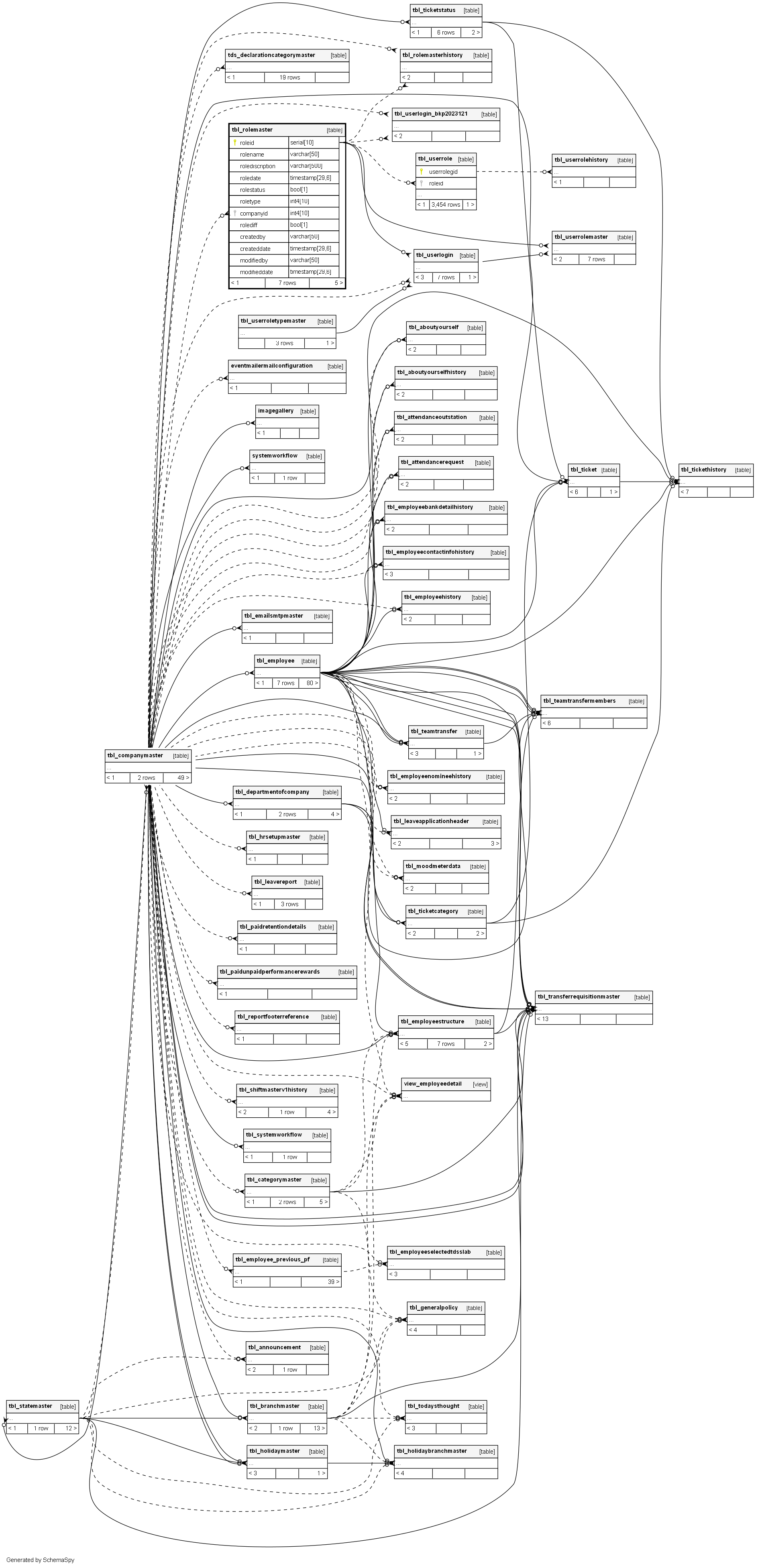

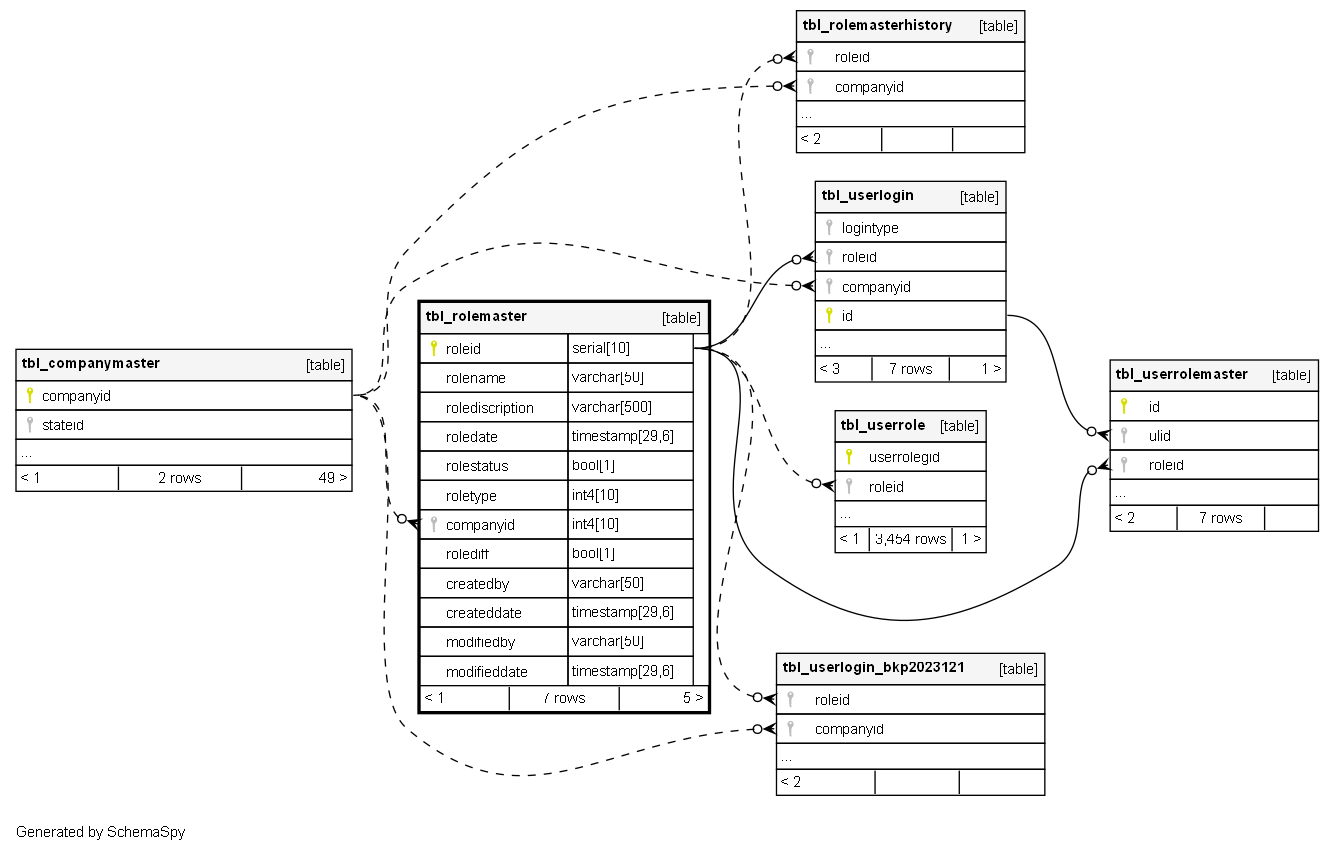

Relationships

Close relationships within degrees of separation
